Post  sunnydog on Fri Jan 24, 2020 3:27 pm

I ordered an electric guitar "kit" a couple of months ago and it finally arrived in the mail the other day as was backordered.
It's solid wood, edge glued body and solid wood neck.  The kit came with everything to complete the guitar save for the stain and paint.

This is a double cutaway Les Paul jr copy, and I'm pretty happy with the body and neck quality.  Fretboard seems nice too.

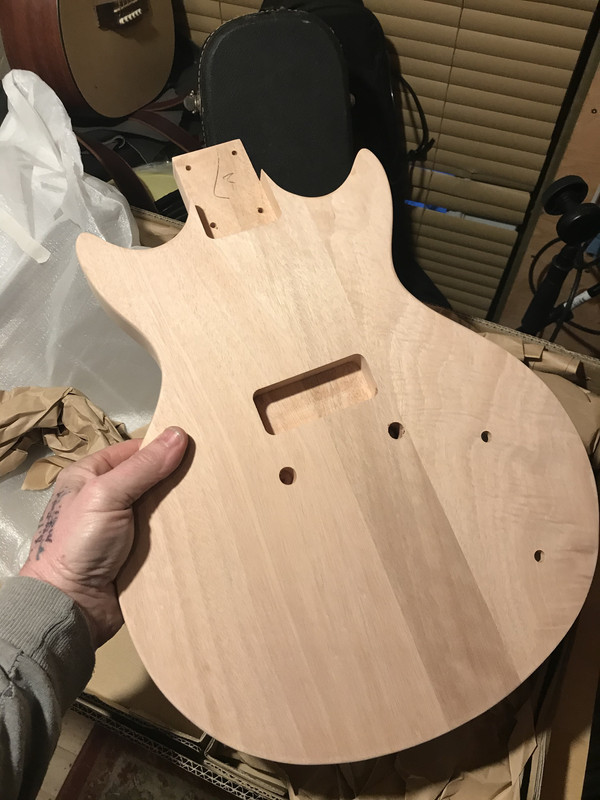

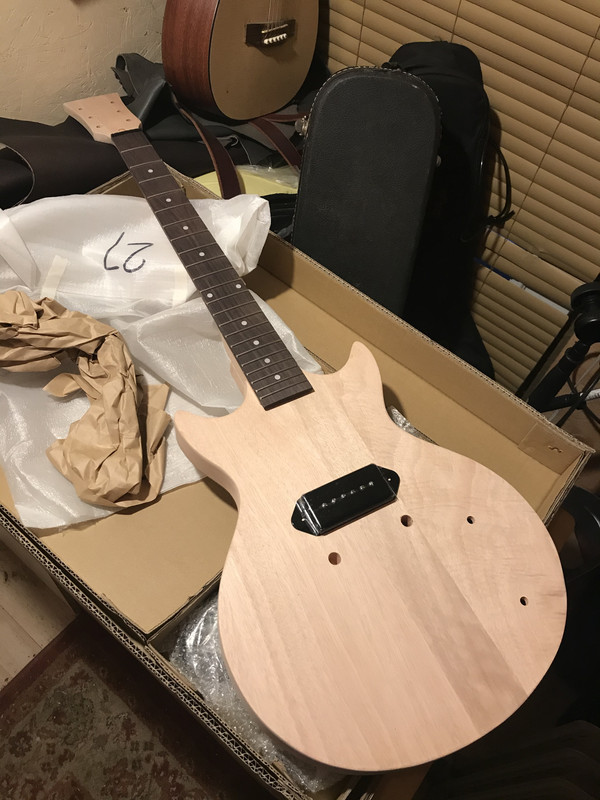

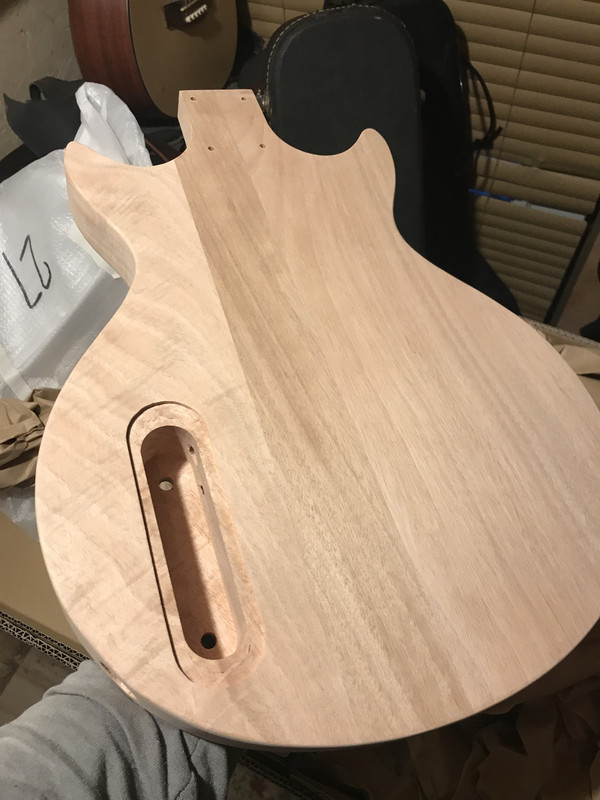

Here it is in rough form, no finishing
guitar build - Les Paul jr copy 8BA1384A-8303-45D4-AE38-EA58AA942A50

guitar build - Les Paul jr copy 90DBC534-1848-4008-B49F-1EFCE2AD0A44

guitar build - Les Paul jr copy A5919F6F-FCA7-49A8-A511-89B92E71BF00
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Fri Jan 24, 2020 3:36 pm

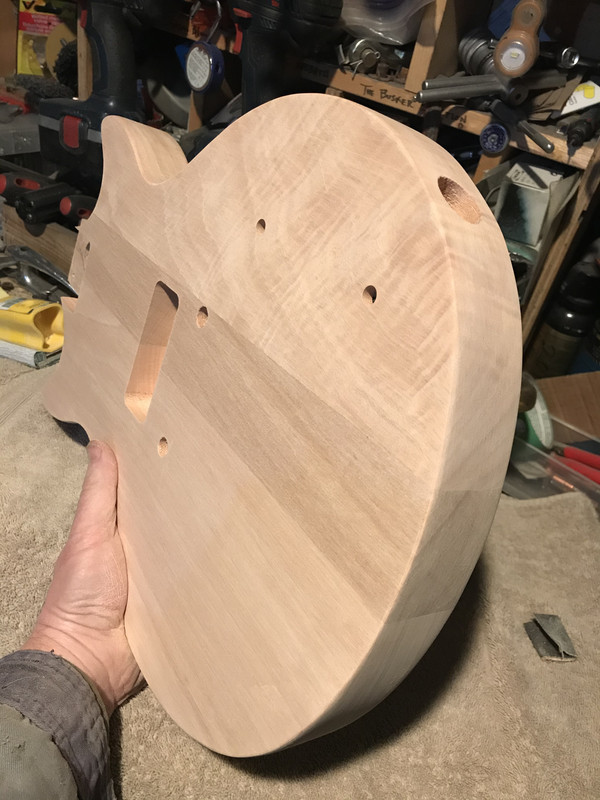

sanded with 150 to prep for grain sealing, both body and neck of guitar.
guitar build - Les Paul jr copy E601A330-ADA5-4348-8ECC-D68BB57C25E0

guitar build - Les Paul jr copy 47054F64-CFFF-4C34-BCD0-AA4CF0F198EB

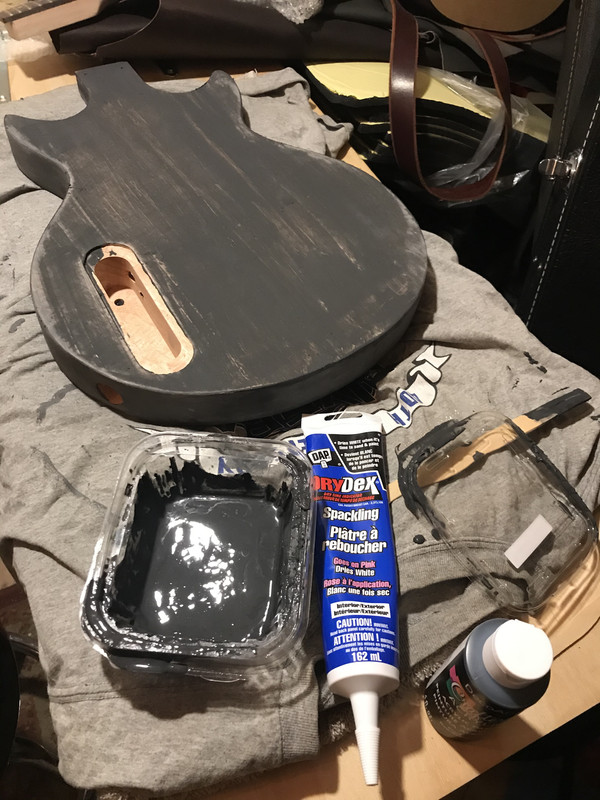

So here's the grain-sealing gear.  Polyfilla, black dollar store acrylic paint, water.  Mix to a consistency of thin pancake batter and spatula onto guitar. I'll tell you I was shitting a brick slathering this stuff onto the nice clean clear surface but what the hey giver!
guitar build - Les Paul jr copy 427F643B-9A74-46EA-B483-F27A2B42CB83

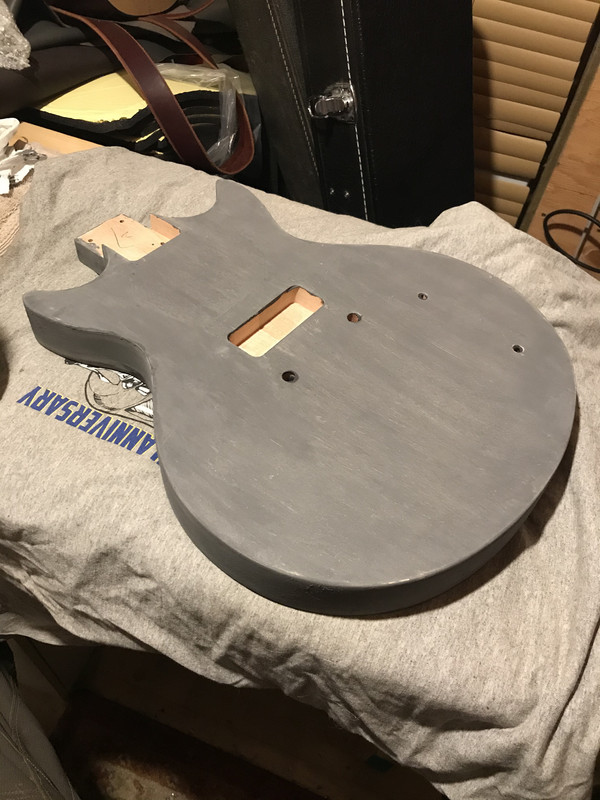

let dry for an hour or until darkness fades to chalky grey.  The water evaporates quite readily as the mix fills the pores in the hardwood.
guitar build - Les Paul jr copy 92E2AE75-C2CB-4395-9169-E368C0E9C897

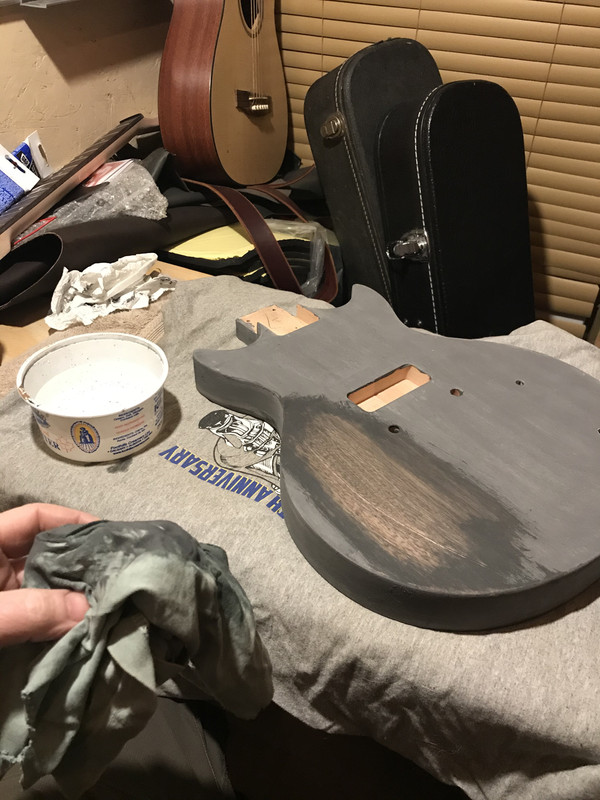

Then using damp cloth, wipe away the residue
guitar build - Les Paul jr copy 62AF6749-CC20-4B35-BB5B-DAE1D55E2465


Last edited by sunnydog on Fri Jan 24, 2020 3:42 pm; edited 1 time in total
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Fri Jan 24, 2020 3:40 pm

The grain is now filled with dark sealer, and once the residue is off the grain much more apparent.
guitar build - Les Paul jr copy 0A4D917F-D0FD-45CF-BD3D-5208B984939E

guitar build - Les Paul jr copy C20E1B54-2C2D-47C9-9F55-CC5475B93B53

I'm going to sand with 150 again, then 220. After that its time to stain her to make the grain really pop.

More to come
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Sun Jan 26, 2020 9:06 pm

Cool project for a picker.That wiggly grain on the body is very nice.
Slathering the goo on just didn't seem right but it does highlight the grain.
Don't forget to date and sign under the neck joint.
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Jan 27, 2020 1:17 pm

Good point Dennman! I will sign and date.

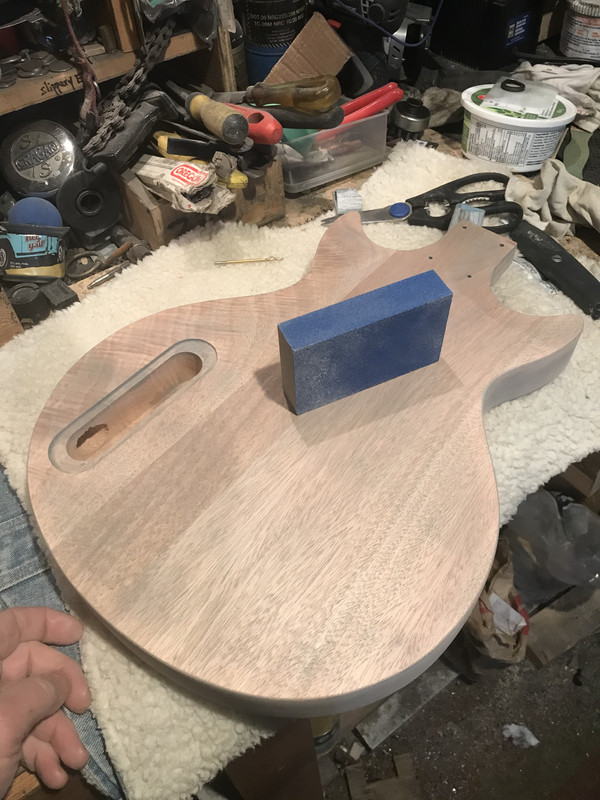

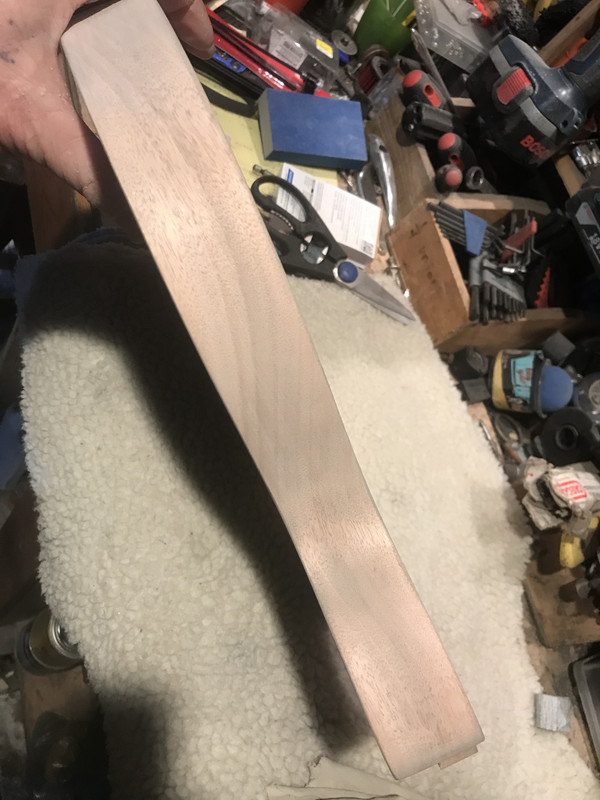

So I sanded with 150 and then 220 following grain sealing, brings it back to a lighter color.
guitar build - Les Paul jr copy 3487E48B-6F0F-47CF-87B5-08251A3771F9

guitar build - Les Paul jr copy FB16C1D1-2BA8-495A-BAE0-E420C75D37F2

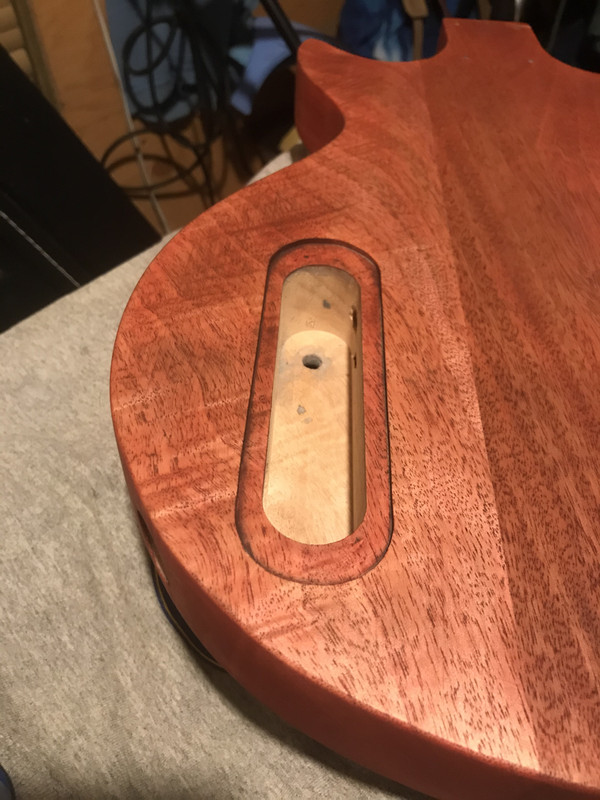

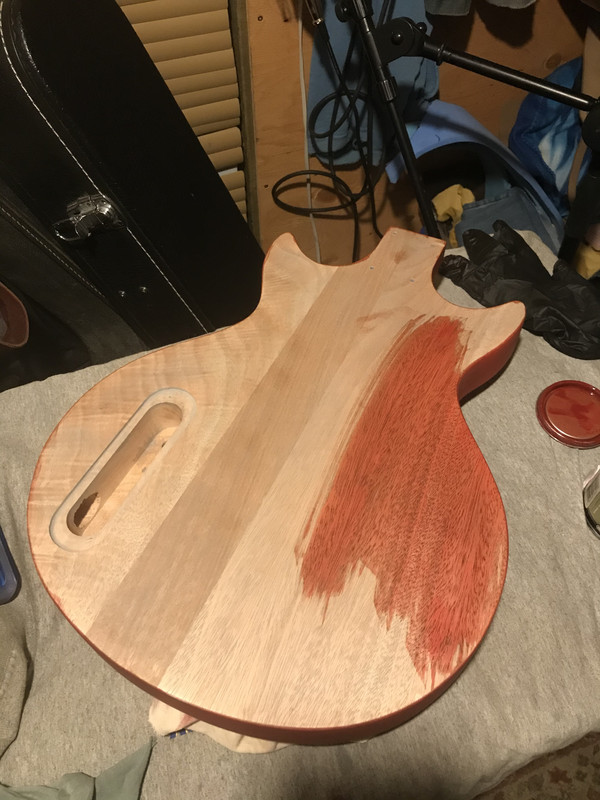

Now I apply my tinted oil stain, "crimson" is the tint but it's pretty translucent. Brings out the grain tho and even some "quilting" in part of the grain. It should be more dramatic with clearcoating once the stain dries 72 hours.
guitar build - Les Paul jr copy DAB4C0C6-1042-40CB-B475-3B02211585CE

guitar build - Les Paul jr copy 4C1FE004-DF7A-4F1C-80B1-03BA201B715C


sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Jan 27, 2020 1:20 pm

now that I've proven to myself the grain sealing tech works, I tackle the neck.

But first I custom cut my headstock with my old scroll saw:
guitar build - Les Paul jr copy 3F50D064-DD67-4B63-AF52-37CC4700BBD1

guitar build - Les Paul jr copy 7EAAD0A9-4C77-4A97-86B4-7136D94FB346

Then lay on the slather after fully taping the fretboard...
guitar build - Les Paul jr copy 32B4A845-6671-4D3E-A6E1-D644C82744E8

guitar build - Les Paul jr copy 4D899E6C-AC7D-423A-A20B-1D6DF0E75E1E

sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Jan 27, 2020 1:23 pm

slurry dried for a couple hours, I wiped it away with wet cloth and here's the neck and headstock with grain sealing done.

guitar build - Les Paul jr copy 36FFB432-D0A6-462C-BF18-6E8C18C08945

guitar build - Les Paul jr copy 9DA47088-DC1B-4470-A9B2-3B4E7FEF6BFF

I will wait for a day for it to dry and then sand 150/220 and stain it as well. I really like the way it's turned out so far.
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Mon Jan 27, 2020 2:45 pm

The headstock personalization is a neat feature.
Is that a scarf(?) joint on the neck.Seems like an odd part of a guitar to join wood sections.
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Jan 27, 2020 4:51 pm

yes there's a joint there, I think because the headstock is like Gibson guitar where its at an angle to the neck and this being a cheap guitar they wouldn't start with one thick block like Gibson might, but rather glue shorter blocks together. When you look at Gibsons the grain of neck is often continuous through headstock, where with this one the headstock grain is parallel to the angle of the head.
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Mon Jan 27, 2020 6:19 pm

Does this kit come with all the electronics? Do you plan to use those and possibly upgrade if they're not to your likin?
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Jan 27, 2020 6:23 pm

It comes with everything yes. I may upgrade the machine heads cause I'm fussy about those. And I've got vol and tone knobs to replace the cheapies it came with. As usual I've accumulated a bunch of stuff over the years and mix/match just like with the bikes.
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Tue Jan 28, 2020 10:43 am

sanded neck and headstock to 220 grit final,
guitar build - Les Paul jr copy B64-E84-A6-5-DF1-44-BC-B756-387-B249-BD50-C

guitar build - Les Paul jr copy C9672-CCF-D498-4013-955-E-FC387-B696-AEA

Then stained with my magic crimson oil
guitar build - Les Paul jr copy 96-BB1-C28-8-D22-4413-A931-801-C72-D7-EA03

guitar build - Les Paul jr copy 6-D0-B6137-D6-E3-4-AA5-A907-7-F1-B48-F8-AA4-E

Now I wait a couple days for full curing of this finish b4 clearing
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Fri Jan 31, 2020 7:19 pm

Cleared yet?
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Feb 03, 2020 1:43 pm

guitar build - Les Paul jr copy 3DDF5384-4429-4592-8C32-F4508D28133D

guitar build - Les Paul jr copy 65E561D5-5711-4A90-8CD1-0C0D74295F27

guitar build - Les Paul jr copy 3251DC8F-B3FE-45D5-B59B-4B5598186D96

after 24 hours drying, pretty happy with the sheen, prolly sand to 800 or 1000 now then polish.
guitar build - Les Paul jr copy A3E081A3-799C-483A-B023-F2D06C939AA5

then on to hardware...

sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Big Dave on Mon Feb 03, 2020 3:14 pm

Thanks Sunny enjoy watching this

Dave
Big Dave
Big Dave

Posts : 611
Join date : 2012-11-06
Age : 64
Location : Osoyoos B C

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Tue Feb 04, 2020 10:37 am

glad you like it Dave.

So I'm gonna paint the headstock of this thing in a gloss black, and the prominence of the grain had me a bit worried with that color going onto it. So I figgered some plastic wood might work as a smooth filler, kinda like bondo for wood ya know? So in another "holy shit" moment I slathered a bunch of plastic wood onto the top side of the headstock and let it dry. Hmmm, it looked really shitty, like a pile of baked bird shit.

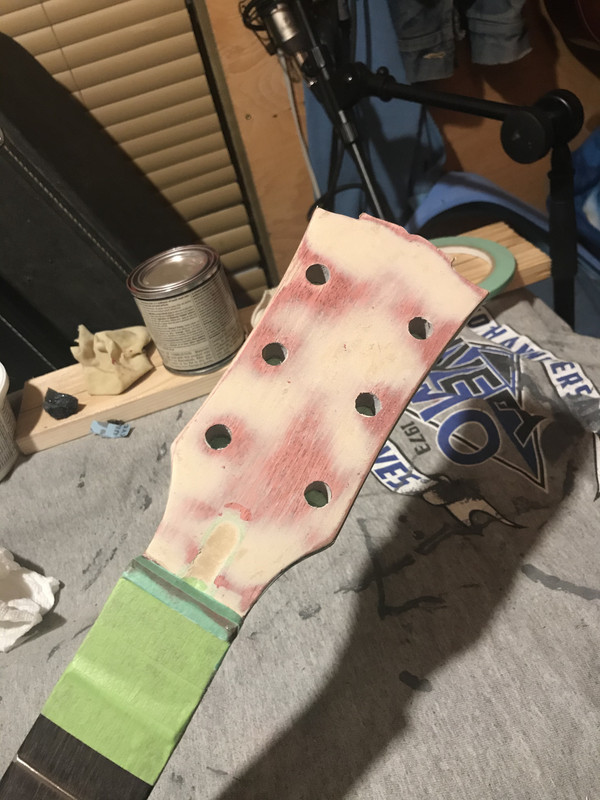

However, a buncha elbow grease and I was able to sand it down to a pretty smooth surface...
guitar build - Les Paul jr copy A7EC57AF-1951-45C1-BAEE-209B2FA5F5FD

And here's a public service announcement from the coffee room
guitar build - Les Paul jr copy 31C10ECB-B911-4EF4-86C4-DB3C371D48C4

Ima prolly paint the headstock tonite, black lacquer
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Wed Feb 05, 2020 10:26 am

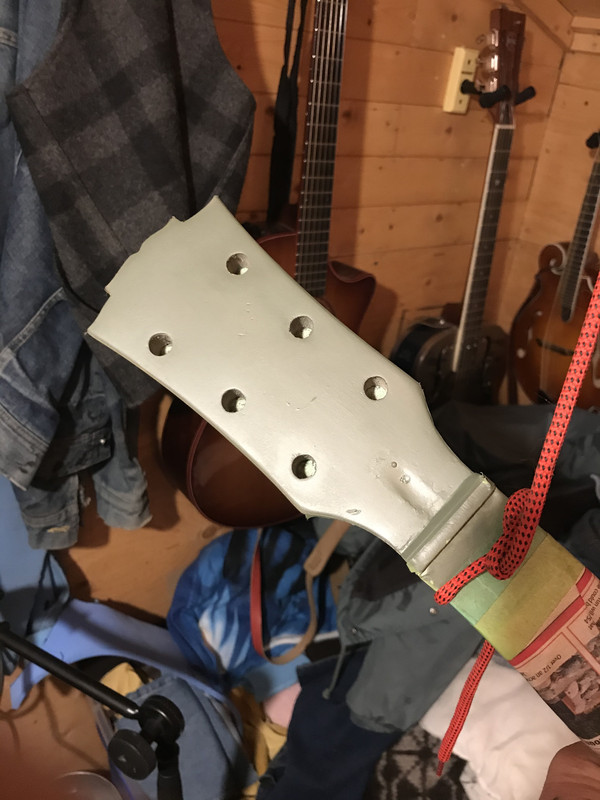

laid down some primer to smoothen and bond the lacquer
guitar build - Les Paul jr copy 789F9D4E-F326-44EF-ADF6-BC1B644EFC05

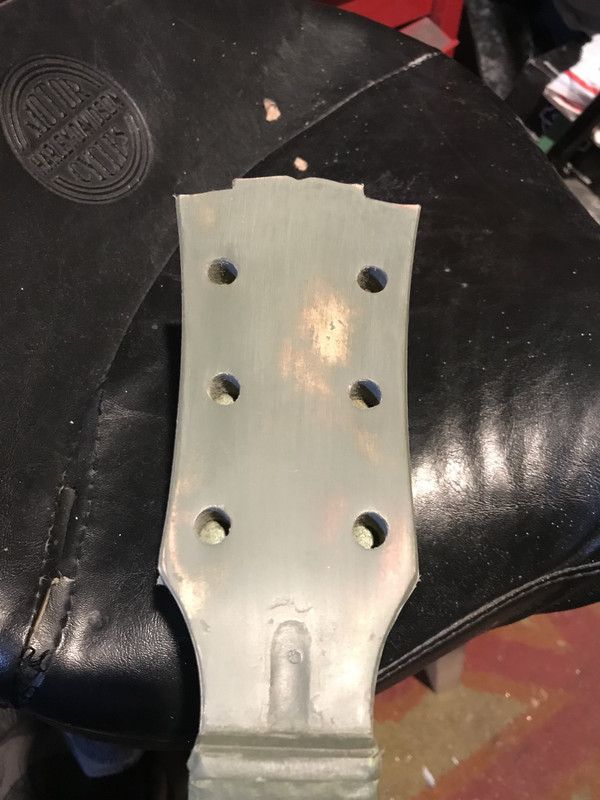

sand her down and more primer
guitar build - Les Paul jr copy A8C6CF43-4528-4CFD-AFB8-316DC8C42B69

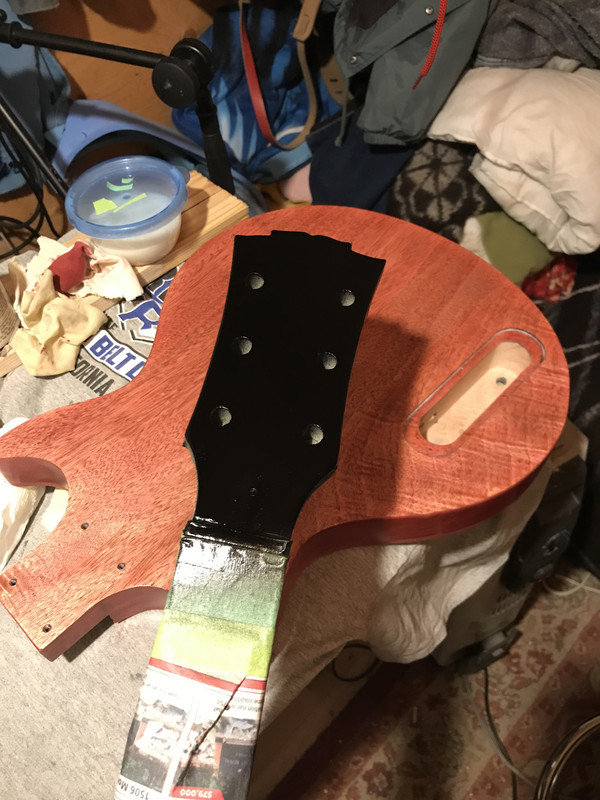

laid down a first coat, lookin ok. The area at base of headstock has masking tape over truss rod hole so the tape will be pulled off once final coat paint dries.
guitar build - Les Paul jr copy 57A61504-8057-4132-9F7B-2976F0D3650D

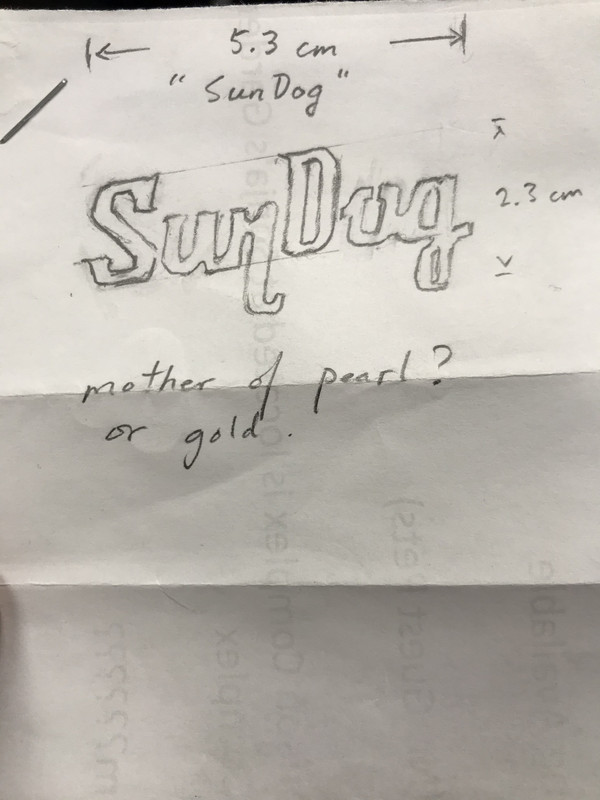

I'm having a custom logo made by a local decal shop...it's in same font as the Gibson logo
guitar build - Les Paul jr copy FF279E9E-E605-48D1-9B2C-61FF198BD5F9

gotta wait for this to be completed before I can stick it on there and clearcoat...
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Wed Feb 05, 2020 11:14 am

Your own logo,cool.Mother of Pearl would be my choice but Gold would look good too.
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Thu Feb 06, 2020 10:09 pm

well based on some of the highlights on body I had to go with this color folks
guitar build - Les Paul jr copy 703-E218-F-4-E80-4-F76-A707-2-C4621-DD106-C

Waitin on the brand logo!
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Fri Feb 07, 2020 10:49 pm

Well it matches the pine boards in the room well.
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Sat Feb 08, 2020 12:36 am

I prefer the gold...much more traditional on this guitar
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Wed Feb 19, 2020 11:35 am

painted the top an off white, called 'desert tan'...nitrocellulose paint from StewMac the guitar candy store...roughed up the edges a bit and tried to age it
guitar build - Les Paul jr copy 58776AD6-79D5-4106-9546-155205A9F918

guitar build - Les Paul jr copy C0D4237D-9208-4300-85EB-A9A69CBEE195

mounted the neck with a 'custom' plate I had kickin around
guitar build - Les Paul jr copy 829C5827-5524-445D-94C0-EAD96CCAA45A

sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Wed Feb 19, 2020 11:44 am

then i painted the rim around the edge with gold lacquer....used the wipe-on poly to seal it
guitar build - Les Paul jr copy E21007BD-57D9-429A-8899-8DADB6507828

finally "done" with the body finish, took an age! Headstock finish next...black gloss and decals done
guitar build - Les Paul jr copy 74B51588-ADDA-473A-994A-7FFD23581C89

guitar build - Les Paul jr copy 8065CC23-11D2-45EA-97F4-FD774BCAE92E

and hardware for headstock
guitar build - Les Paul jr copy FBA88AFA-90DA-48BE-B48E-8FC01E92B20B


sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Wed Feb 19, 2020 11:46 am

now for body hardware
guitar build - Les Paul jr copy 409FF9C9-7645-47D1-9D58-2AC9AD2FC803

hang her up to cure
guitar build - Les Paul jr copy F4789907-B340-44B9-A773-446A8B316C1B

guitar build - Les Paul jr copy 1B84D513-148B-45B8-BCBC-69462FB06F97

gonna wire and string next
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Wed Feb 19, 2020 3:25 pm

Beautiful finishing touches sunny. Had a bit of doubt on that front paintjob but it looks good with the hardware and pick guard.
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Feb 24, 2020 12:47 pm

wiring was challenging for me cause tiny pots to solder and also very fine wire. However I managed to get er done
guitar build - Les Paul jr copy BCC58FFD-906A-434F-984F-CE8EC91903F4

guitar build - Les Paul jr copy 7FEC485C-0169-4866-A052-188775AEF6E4

Lined the pickup cavity with foil to try mitigate buzz from the single coil P90
guitar build - Les Paul jr copy D03C29E6-A5EC-42CD-BC87-EB7F415F5ED3


sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Feb 24, 2020 12:48 pm

couple last brag shots
guitar build - Les Paul jr copy 8175A9D4-F012-4104-9EBA-978577EEAAB9

guitar build - Les Paul jr copy E482FA07-8A63-4E56-A236-ABEF526EBCE3

pickup volume and tone works!
guitar build - Les Paul jr copy 36600360-D9D0-408A-AC8A-8D8F04E6A776
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Feb 24, 2020 2:11 pm

and a vid...that’s all folks
https://youtu.be/djAjkGgukSE
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Mon Feb 24, 2020 4:12 pm

Wiring? Worse than soldering stock handlebar switches on a shovel?They were an ordeal until I got a propane burning unit about the size of a large magic marker.
It sounds sweet Sunny and appears to be a comfortable size to play.
Are you satisfied with the total finished product.
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Mon Feb 24, 2020 11:19 pm

I'm very happy with it sir, I'd do it again for sure. I'm hoping to order another kit in left-handed model maybe telecaster style and build it for a brother. I think all-in for parts and supplies I was prolly $350 CDN by time smoke cleared, so next time around I'd be good for finishing stuff already and could do it for under $300. Pretty good guitar for that price and a really enjoyable project.
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Dennman on Mon Feb 24, 2020 11:49 pm

Well I am most appreciative that you shared the build here. I'm not much for phone conversing due to my hearing difficulties and this site is my best way to keep in touch with the eastern Kootenay folk.
Thank you ,sir.
Dennman
Dennman

Posts : 1389
Join date : 2012-10-31
Age : 72
Location : Courtenay

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  sunnydog on Tue Feb 25, 2020 11:16 am

You are welcome, glad you liked it. Gotta do something to keep the winter blues down....and write some more winter "blues" lol
sunnydog
sunnydog

Posts : 1987
Join date : 2012-10-28
Age : 51
Location : Akimbo Alogo

Back to top Go down

guitar build - Les Paul jr copy Empty Re: guitar build - Les Paul jr copy

Post  Sponsored content


Sponsored content


Back to top Go down

Back to top



Permissions in this forum:
You cannot reply to topics in this forum
