Econo - the final cut

Page 1 of 2 1, 2  Next

Go down

Econo - the final cut Empty Econo - the final cut

Post  sunnydog on Tue Oct 23, 2018 10:54 am

I been selling shit for about 6 months and searching the web...found this custom fender handbuilt in Pennsylvania by a guy named James Duffy. As many of you might recall I built my own a number of years ago, but my poor craftsmanship and welding...it was never really what I was after. This thing is beautifully crafted, all tigged and includes seat pan/other mounting accessories.

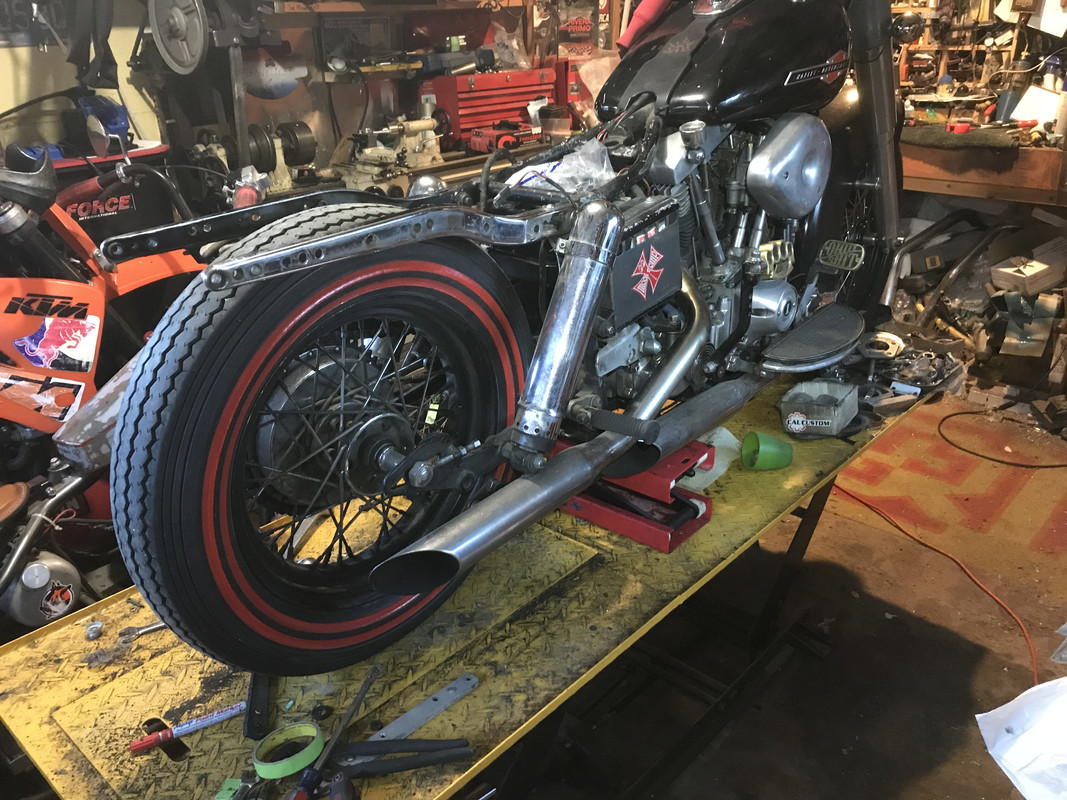

So I dismantled the old...
Econo - the final cut 3A8AD8B1-C155-4DFF-802F-37D05549D9C7

Econo - the final cut C3853054-8B41-4048-827B-71BF33A60ACE
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Tue Oct 23, 2018 10:56 am

and installed the new...
Econo - the final cut C73C011A-D06A-4F9A-91D2-7A0AF332DB19

Econo - the final cut C857E99A-14CE-4327-9233-5FAF0C78E1FC

Econo - the final cut 40F3308E-D360-4CFF-BABE-3418F1CB4916

Let fly with your critiwiticisms...I can take it
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  ratman on Tue Oct 23, 2018 1:00 pm

Nice - that's a copy of the Crazy Frank fender from the 70's (with the addition of the seat pan).  How are the internal struts?

As you know I have a strutless rear fender and there can be some issues with side to side movement due to the flat bar of the internal struts (instead of U channel OEM which is much more rigid)
ratman
ratman

Posts : 245
Join date : 2015-07-09
Age : 59
Location : Vernon, BC

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Wed Oct 24, 2018 7:59 am

Feels very strong Paul...I think it’s gonna be fine by how stiffly it’s built
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  kootenai on Wed Oct 24, 2018 10:52 am

sweet score man it looks really nice on the Econoline crush!
kootenai
kootenai
Admin

Posts : 906
Join date : 2012-10-27
Location : british columbia

https://66-84.canadian-forum.com

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  ratman on Wed Oct 24, 2018 12:30 pm

sunnydog wrote:Feels very strong Paul...I think it’s gonna be fine by how stiffly it’s built

Good news - it looks great
ratman
ratman

Posts : 245
Join date : 2015-07-09
Age : 59
Location : Vernon, BC

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Wed Oct 24, 2018 1:02 pm

Will be easier to follow the progress here than on the new format US site.
As with most parts on our rides ,if it shouldn't move and is attached so it won't; then no problem.Any slight motion w/ weight on it will cause a waylay down the road.I trust it is well built at the shock and frame mount locations.
Lookin forward to your upholstery work.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Wed Oct 24, 2018 2:46 pm

I'll try to post more here Denn, there's little interest in anything COB or custom over there, such purists in their garage jewelry, while riding twinks on weekends lmfao.  I've been thru many iterations with the Econo and I feel this is where she wants to be.....

for now

I'll roll her out in the sun after work today so ya'll can see the lines....hell, so I can see the lines, it's so tight in my shop im only catching glimpses...
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Wed Oct 24, 2018 6:34 pm

Here she look
Econo - the final cut 3-E8-C8-C36-55-E5-4-CBF-9-CD5-047-EF3-F91460
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Wed Oct 24, 2018 7:14 pm

Whew just figured out how to see the whole pic.This site likes to cut of the right third or so.
Lookin good in the profile.
I know all about those tight quarters in the shop.Alot of scoot could-be-dones get put off due to the cramped quarters that I have.
Your floorboard mounting has given me an idea if I ever swap all the Weerier's gear over to an FX frame that I have.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Wed Oct 24, 2018 7:35 pm

Hey Denn...how do you get the site to show whole pic...it's got me stymied

Oh, just tap on it lol
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Wed Oct 24, 2018 7:43 pm

sunnydog wrote:Hey Denn...how do you get the site to show whole pic...it's got me stymied

Oh, just tap on it lol
Ya,just click on the photo and it takes you to the photo source.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  ratman on Wed Oct 24, 2018 10:04 pm

Looks good to me John, nice job.
ratman
ratman

Posts : 245
Join date : 2015-07-09
Age : 59
Location : Vernon, BC

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  kootenai on Fri Oct 26, 2018 11:43 am

two thumbs up from the flats dude..
kootenai
kootenai
Admin

Posts : 906
Join date : 2012-10-27
Location : british columbia

https://66-84.canadian-forum.com

Back to top Go down

Econo - the final cut Empty fender finishing in the works

Post  sunnydog on Mon Oct 29, 2018 4:41 pm

thanks men, I appreciate your thoughts...

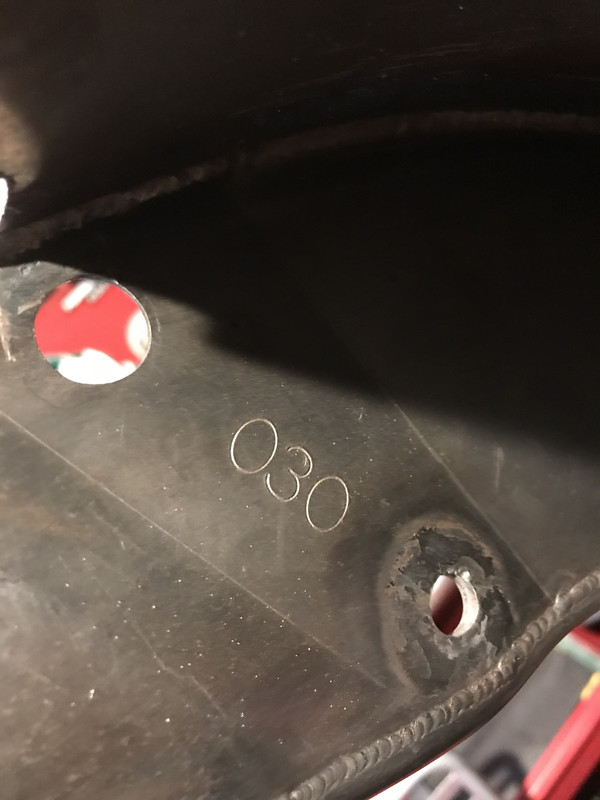

this fender is number 30 in the production run since he started making em, just found the stamp!
Econo - the final cut 233C3DAE-4B31-4110-9719-12C323213D54

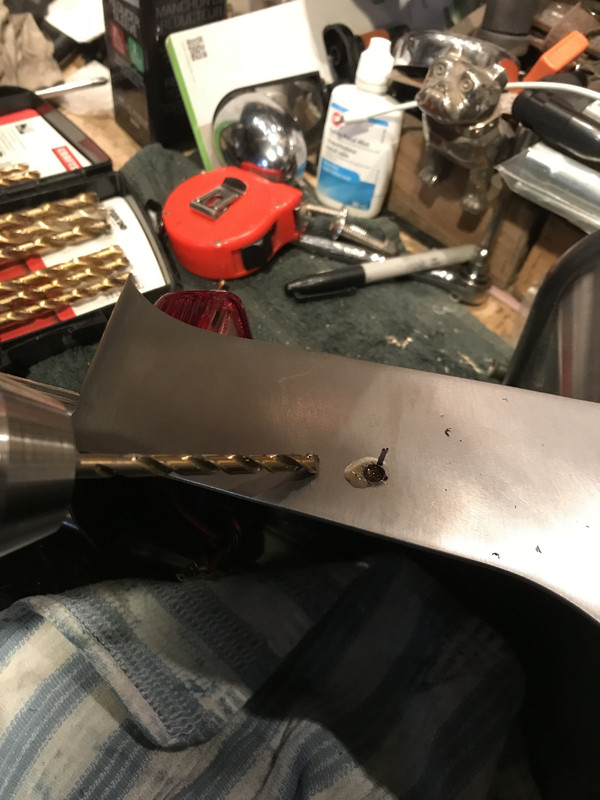

marked locations for a double whammy hole on each side. The bolt will hold the sissy bar in place, and serve as an outlet for signal light mounting/wires...drilled pilot and now enlarging
Econo - the final cut 99DF856D-DA0D-4A70-A036-4DA30E2AA017

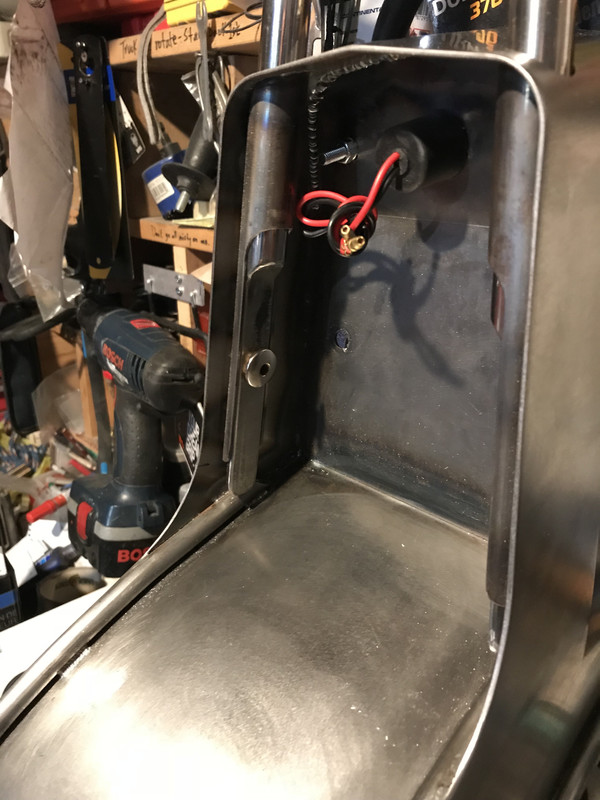

Here's a pic of the bolt with hole in it for wire...the sissy bar already friction mounts quite securely because of its arrow shape, but these bolts should make sure it doesn't rise up at all...
Econo - the final cut 9F5A85B1-3694-418B-B4A8-48F92AE2A787

sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Mon Oct 29, 2018 4:45 pm

and a look from the outside...
Econo - the final cut 2412BF1F-81E2-4330-B9EA-80688BF6135B

same bullet lights as always...
Econo - the final cut F0AA8E3D-FCDC-49DF-A78A-7AA0F06FA367

and then I tackwelded a piece of 3/8 steel brake line inside for wires to run thru...drilled a hole and placed grommet for passage into top/back of fender
Econo - the final cut 60F90983-26B1-4B08-A613-4DD1E2CAF8A9
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Mon Oct 29, 2018 4:47 pm

a look up her keester...
Econo - the final cut C93DDEC1-09E1-467E-A590-70DA01BFDCCE

stripped all the wiring and hardware off, now priming for paint...
Econo - the final cut 593FF785-DD0C-4322-BCE3-CD8BB4782656

all for now, will post more pics as progress made.
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Mon Oct 29, 2018 6:03 pm

That does look like a well designed fender.Every add on is a snug fit and the reinforced seat area plus the rolled (?) bottom edge should make that function problem free.
Keep it up with the progress reports.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Sat Nov 03, 2018 8:25 pm

Put a coat of undercoat on inside of fender, then rattle can black and clearcoat.  She’s not perfect by a long stretch and that’s good cause it’s goin on a dirty black Shovel!!!

Econo - the final cut 41-F575-FE-F3-FC-44-A3-A2-B8-5-B0-E712-D6-D36
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Sat Nov 03, 2018 8:32 pm

Any red accents getting added later?
Looks OK for a bomb.
I never had any luck with a canned clear.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Sun Nov 04, 2018 9:27 am

I'd like to do a very simple pinstripe accent on it...but I'm not good at striping...may practice up a bit on mock panel then give it a shot
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Sun Nov 04, 2018 10:21 am

I'm not great at fine lines by hand either.I bought some thin,red pinstriping tape.I can't remember what I used it for.Apparently I'm not good at remembering either.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Mon Nov 05, 2018 9:15 am

Lol...I lose stuff constantly in my cluttered shop.

Here’s the wiring in place, ready to attach lights
Econo - the final cut C741-AD2-C-B965-4779-8393-C971662-DBCB4

lights in place, loom tied in place
Econo - the final cut B554-D957-9-C75-44-B0-B14-E-24118-C067786

Used a piece of mud flap and cut it down to make a...well a mudflap
Econo - the final cut 5-D38985-A-0467-4470-A303-47996-A9-CB2-F7

Here’s the whole shitteree with seat pan n all
Econo - the final cut 57-F3-B8-F6-69-D2-4-DB6-B0-F3-507809-CB9-B3-A

Hopefully tonite I will install on bike
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Mon Nov 05, 2018 11:47 am

Moving right along there.Your wiring tags are similar to mine under the nacelle.All the wires are tagged with their position in the terminal block.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Mon Nov 05, 2018 12:34 pm

I label the piss outta wiring because I'm electrically retarded and 'short' of filming the entire process I need all the help I can get. When I wire something and it works its an epiphany the likes of man's discovery of fire...I can't wipe the grin off my face.
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Mon Nov 05, 2018 12:42 pm

I Know that feelin and do the same when pullin off parts with wires.If it worked,tag it and put back the same.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Tue Nov 06, 2018 8:31 am

mounted and lights hooked up
Econo - the final cut D99-D5-EA9-13-A3-4-D20-859-D-AF5542181443

Econo - the final cut 9-E91-EE9-A-1-A4-D-4773-BEC0-9-AE6-EE845084

dats all folks
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Tue Nov 06, 2018 10:55 am

It shines.I presume the brake light and signals work too.
I noticed that you have a handy deterent to opposing opinions hangin there handy on the bench.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Tue Nov 06, 2018 3:43 pm

Dennman wrote:It shines.I presume the brake light and signals work too.
I noticed that you have a handy deterent to opposing opinions hangin there handy on the bench.

Brake light works, very bright too, and my signals both work!  The labelling has succeeded!  I may label the dogs and cat now since it's proven effective in identifying things. Of course now i have everything mounted I'm thinkin of altering the signal posts a bit so maybe I'm not done yet.

PS yep that's my zombie killer...there's many around these parts, some call them millenials
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Tue Nov 06, 2018 5:22 pm

Signal posts? Semafore flag handles come to mind.Awkward to use on a bike.
Millenials ? This septagenarian doesn't see or have to deal with them.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Wed Nov 07, 2018 10:40 am

semaphores like on the old citroen deux chevals....that might be a tricky setup...maybe 10 speed cables and a complex system of small levers/pulleys inside the fender...
kinda like my dry sump prim chain oiling setup when I had the tin primary on Econo...Rube Goldberg
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Wed Nov 07, 2018 11:27 am

sunnydog wrote:semaphores like on the old citroen deux chevals....that might be a tricky setup...maybe 10 speed cables and a complex system of small levers/pulleys inside the fender...
kinda like my dry sump prim chain oiling setup when I had the tin primary on Econo...Rube Goldberg
There use to be a British Morris back in the '50s that had those waggers on the door posts.
T'would have been neat to see them if they'd had an emergency mode.Flappin away,likin to take off.
Rube Goldberg on my Weerier was a recirculatin oil line from the crank vent back to the oil bag filler.Sheared a key on the scavenging gear in the pump and couldn't afford to fix it. Rode that way for months.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Wed Nov 07, 2018 11:56 am

I love Shovels
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Wed Nov 07, 2018 12:35 pm

When I finally got around to a total rebuild,I was gobsmacked at how loose all the part tolerances were and, yet ; she still took me faithfully down the road. Started to think of shovel engineering as Tractor engineering.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Wed Nov 07, 2018 3:56 pm

Dennman wrote:When I finally got around to a total rebuild,I was gobsmacked at how loose all the part tolerances were and, yet ; she still took me faithfully down the road. Started to think of shovel engineering as Tractor engineering.

How many stories that Shovel pilots relate about their trusty steeds and how they get you home to the barn with so much wrong...running on one cylinder while other is dead...running on one cylinder while wrist pin in other carves into cyl wall...running with valve train in shambles...running with no charging system...running with jury-rigged oiling systems...running with carb literally tied on with leather bootstraps...running with hand-carved wooden parts to replace metal ones that have fallen off...running until they shut down because of any/all of above, and after cool down re-starting and running again until next point of temporary failure.....I don't hear any stories like this about twinks.
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Wed Nov 07, 2018 5:21 pm

Too many sensors on em to tell what is feckin up.Hell if their fob screws up they can't even start em.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Wed Nov 07, 2018 5:35 pm

Dennman wrote:Too many sensors on em to tell what is feckin up.Hell if their fob screws up they can't even start em.

two essential tools for touring on a twink...cellphone and credit card lol
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty back to the project

Post  sunnydog on Thu Nov 08, 2018 12:00 am

so decided to build signal light mounts, and I had some brass so I chucked it up and made 1” posts with 5/16” holes in centre to run wiring thru.

Then I cut down some old bolts to around 2” and bored them on lathe for wiring...
Econo - the final cut 55-F36-E94-5-E6-E-47-DE-BAC2-B98-EF580-B8-F9

Econo - the final cut CB326622-E178-426-C-B868-42-A3-D90679-E0

then cut threads for nuts
Econo - the final cut E044-D419-18-BA-4710-BD8-C-6250-E6-EC1-B83
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  sunnydog on Thu Nov 08, 2018 12:03 am

Threaded and ready
Econo - the final cut 5-A4-A7-D89-68-E9-4721-B39-E-602869-AC27-CE

And fit the brass posts with enuff thread to mount thru sissy bar
Econo - the final cut 6-B81-A609-7397-4950-B5-A8-E7-ADDABCF957
sunnydog
sunnydog

Posts : 1939
Join date : 2012-10-28
Age : 50
Location : Akimbo Alogo

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Dennman on Thu Nov 08, 2018 12:27 am

A little ChengaDog work there.Very nice!
Good lookin die holder.My plain one comes from a New Zealand made set that I garage saled for $5.
Dennman
Dennman

Posts : 1350
Join date : 2012-10-31
Age : 71
Location : Courtenay

Back to top Go down

Econo - the final cut Empty Re: Econo - the final cut

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top



Permissions in this forum:
You cannot reply to topics in this forum
